Anti-Insect Net

Viewpoint Insect Net has been designed and tested to offer the highest quality Insect netting available for Cabbage Root Fly, Carrot Root Fly, Flea Beetle, Green Fly, White Fly, Aphids & Thrips. It is constructed from virgin polyethylene and has a UV life expectancy of over 3 years.
Blocks penetration of insects and protects against pests, such as tobacco Whitefly (Bemisia-tabaci), Leaf miner, Aphids and Thrips.
To be used in cultivation of flowers and vegetables in shade houses and nurseries.
The anti insect net is made of monofilaments that are manufactured with special UV-resistant materials, giving the net durability and longevity. It has strong tucked selvedges, and is flexible, light, and easy to spread.
Anti-Insect Nets


Round high-strength monofilament construction provides extra tensile strength.

High stabilized to be resistant to Ultraviolet Rays.

Original weaving techniques - to prevent unraveling when cut.

Reinforced side edges - to eliminate yarn displacement.

Super accurate weaving - to conform 100% mesh density and shade percentage.

Lightweight - for easy handling, positioning, installation and storage.

Specification of Anti insert net Range

Mesh 50, Mesh 40, Mesh 32, Mesh 24, Mesh 16

Anti insect net / anti aphid net / Schutz vor Insekten / Proteccion para insectos / Protection contre les insectes

Product Name Anti - Insect Net
Material Type HDPE Mono Filament
Color Transparent
Part No. Mesh 16 Mesh 24 Mesh 25 Mesh 32 Mesh 40 Mesh 50
Mesh Size (mm) 1.33 x 1.42 0.8 x 0.8 0.75 x 1.22 0.58 x 0.66 0.79 x 0.4 0.78 x 0.26
Mech (Inch) 16 x 15 24 x 23 25 x 20 32 x 29 40 x 25 50 x 25
Weight (g / ㎡) 60 75 110 80 110 130
Width 1.8M, 3.2M, 3.6M, 4.2M, 5M, (Up to 25M by seam)
Length 50M, 100M, 200M
Seam Work Yes
Edge Reinforced 20 mm each side
Stabilization All nets UV stablized
Packing Wound on 32mm diameter round core
USING To resist Bird and Insect such as fruit fl, Locust, Aphid and Thrip & Temperature and ventilation control

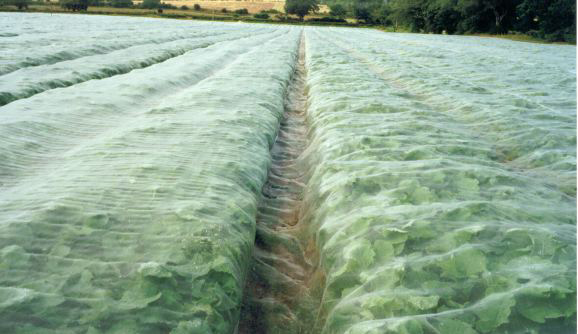

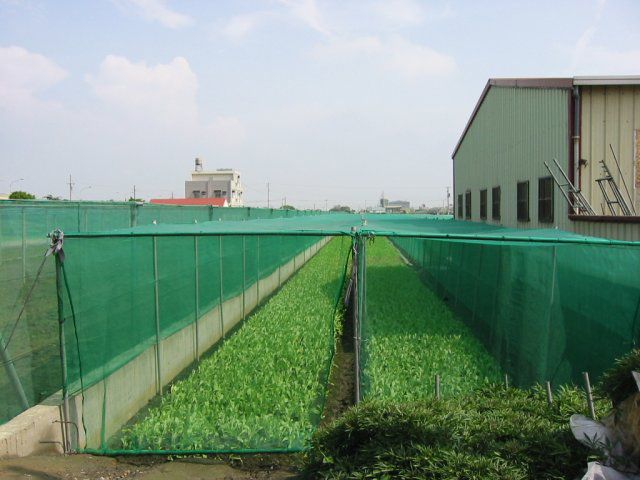

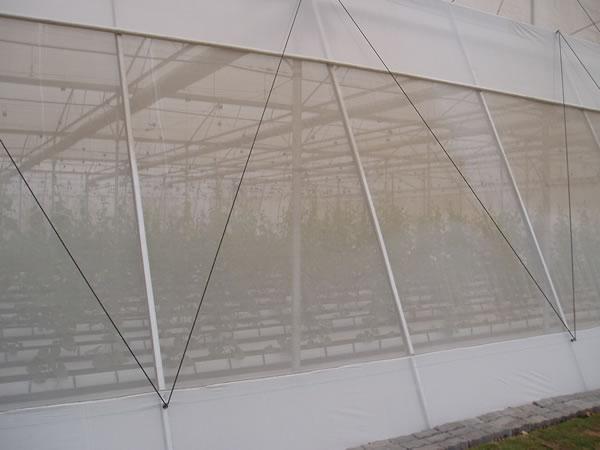

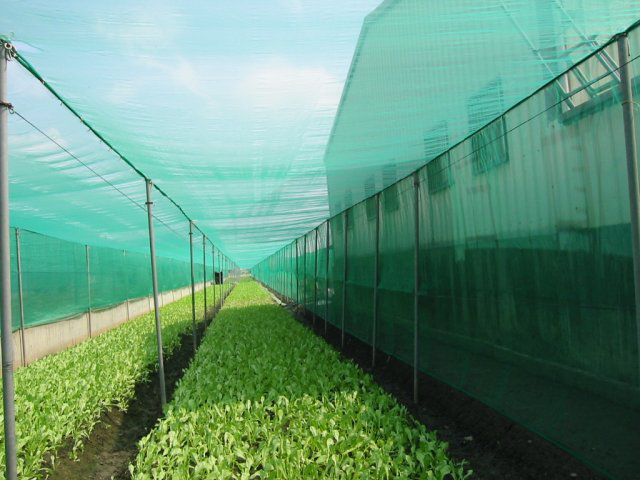

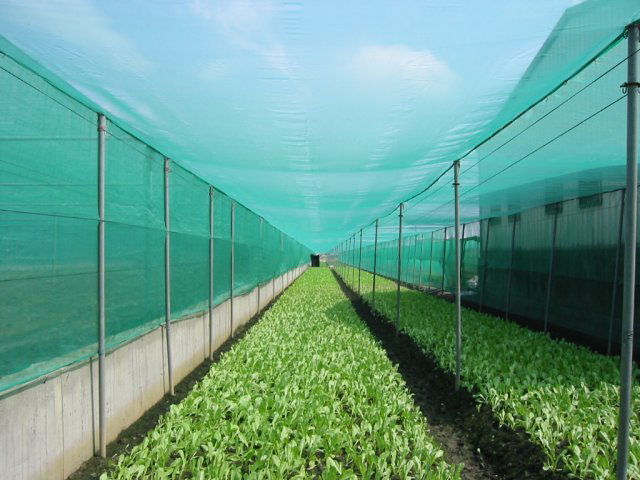

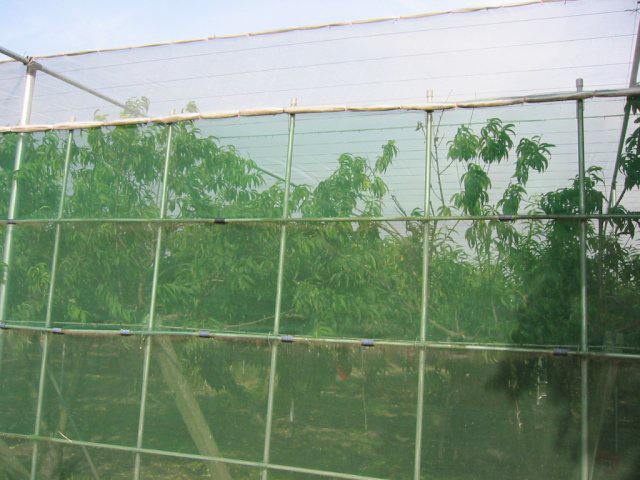

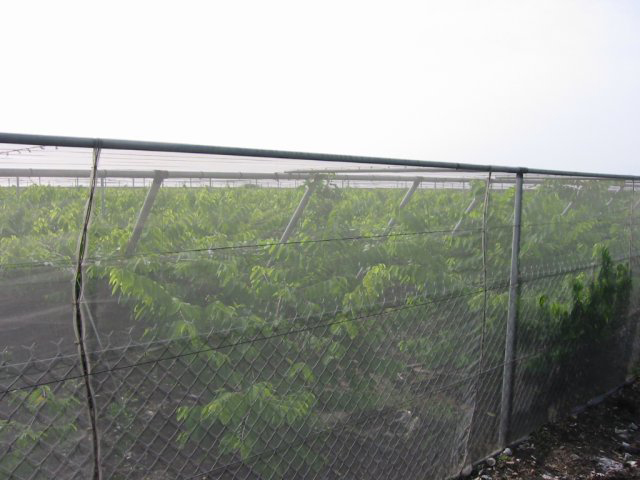

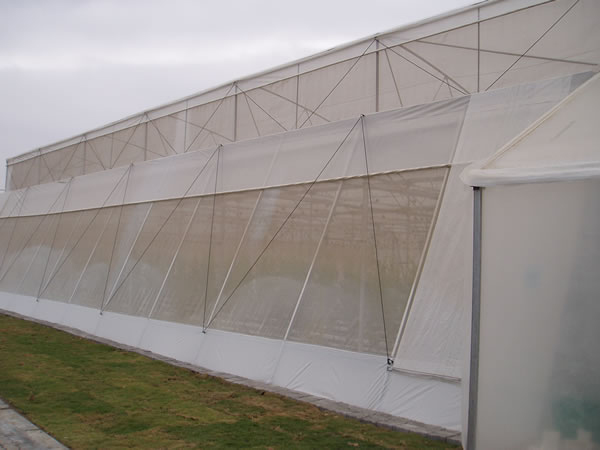

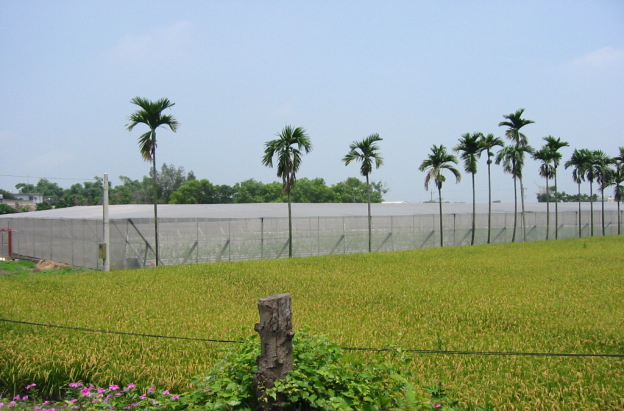

Example-1 Example-2 Example-3 Example-4 Example-5 Example-6 Example-7 Example-8 Example-9
